CASE STUDY ON BRIDGES (subject : Engineering Systems)
>Definition of Bridge
• A bridge is a structure providing passage over an obstacle without closing the way beneath. The required
passage may be for a road, a railway, pedestrians, a canal or a pipeline. The obstacle to be crossed may be a
river, a road, railway or a valley.
• In other words, bridge is a structure for carrying the road traffic or other moving loads over a depression or
obstruction such as channel, road or railway.
>COMPONENTS OF A BRIDGE
The bridge structure comprises of the following parts.
* Superstructure or Decking
This includes slab, girder, truss, etc. This bears the load passing over it and transmits the forces caused by the same
to the substructures.
* Bearings
The bearings transmit the load received from the decking on to the substructure and are provided for distribution of
the load evenly over the substructure material which may not have sufficient bearing strength to bear the
superstructure load directly
* Substructure
This comprises piers and abutments, wing walls or returns and their foundation.
* Piers and Abutments
The intermediate bridge supports are called piers and the main function of piers is to divide the total length of bridge
in to suitable spans with minimum obstruction to the river.
Abutments are end support of a bridge super structure its function is to finish up to bridge so that it can be put for
use. And also to transmit the reactions of superstructure to the foundations
* Wing walls
These are provided as extension of the abutments to retain the earth of approach bank which otherwise has a
natural angle of repose.
* Foundation
This is provided to transmit the load from the piers or abutments and wings or returns to and evenly distribute the
load on to the strata. This is to be provided sufficiently deep so that it is not affected by the scour caused by the flow
in the river and does not get undermined. While the above mentioned are structurally operational parts, for safety
hand rails or parapets, guard rails or curbs are provided over the decking in order to prevent vehicle or user from
falling into the stream or for the separation of traffic streams.
>CLASSIFICATION OF BRIDGES
• Bridges may be classified in many ways, as below.
According to the flexibility of superstructure as fixed span bridges or movable bridges.
• Fixed span superstructure
In case of fixed span superstructure, the superstructure remains in a fixed position and most of the bridges
are of this category.
• Movable span bridges
In case of movable span superstructure, the superstructure is lifted or moved with the help of some suitable
arrangement.
• According to the position of bridge floor relative to the formation level and the highest flood
discharge as deck bridges, through bridges or semi through bridges.
• Deck bridges
• Bridges may be classified in many ways, as below.
According to the flexibility of superstructure as fixed span bridges or movable bridges.
• Fixed span superstructure
In case of fixed span superstructure, the superstructure remains in a fixed position and most of the bridges
are of this category.
• Movable span bridges
In case of movable span superstructure, the superstructure is lifted or moved with the help of some suitable
arrangement.
• According to the position of bridge floor relative to the formation level and the highest flood
discharge as deck bridges, through bridges or semi through bridges.
• Deck bridges
If it is possible to accommodate the superstructure of bridge between these two levels with suitable allowance for clearance as shown in figure it is called Deck Bridge
• Through Bridges
Sometimes the difference between the formation level and H.F.L is not sufficient to accommodate the superstructure of bridge. In such cases the super structure projects above the formation level as shown in figure is called through bridge
• Semi-Through Bridges
When the super structure of bridge projects partly above the formation level and partly below the formation level,
as shown in figure it is called as semi through bridge.
> According to the inter-span relations Bridges are classified in to three categories
• Simply supported
Generally width of bridge is divided into number of individual spans. For each span, the load carrying member is
simply supported at both ends.
• Continuous
• In continuous bridges spans are continuous over two or more supports. In continuous bridges the bending moment anywhere in the span is considerably less than that in case of simply supported span. Thus continuous span bridges have considerable saving compared to simply supported bridge Cantilever A cantilever bridge is formed of cantilevers projecting from supporting piers. The ends of a cantilever bridge are treated as fixed. A cantilever bridge combines the advantages of a simply supported span and a continuous span. For long spans and deep valleys and at places where it will not be practicable to use centering, cantilever bridges are more suitable. They are suitable in case of uneven settlement of foundation. The construction of a cantilever bridge may either be of simple type or of balanced type.
construction.
Cantilever Bridge with simple construction
In case of cantilever bridge with balanced type of construction, hinges are provided at the points of contra flexure of a continuous span and an intermediate simply supported span is suspended between two hinges.
• According to the form or type of superstructure as arch, beam, truss, slab, rigid frame or suspension
bridges.
• Slab
• Beam
bridges.
• Slab
• Beam
• Girder
• Truss
The girder/beam as well as the truss can be made up of timber, steel or concrete, or can be made up of combination of steel and concrete.
The girder/beam as well as the truss can be made up of timber, steel or concrete, or can be made up of combination of steel and concrete.

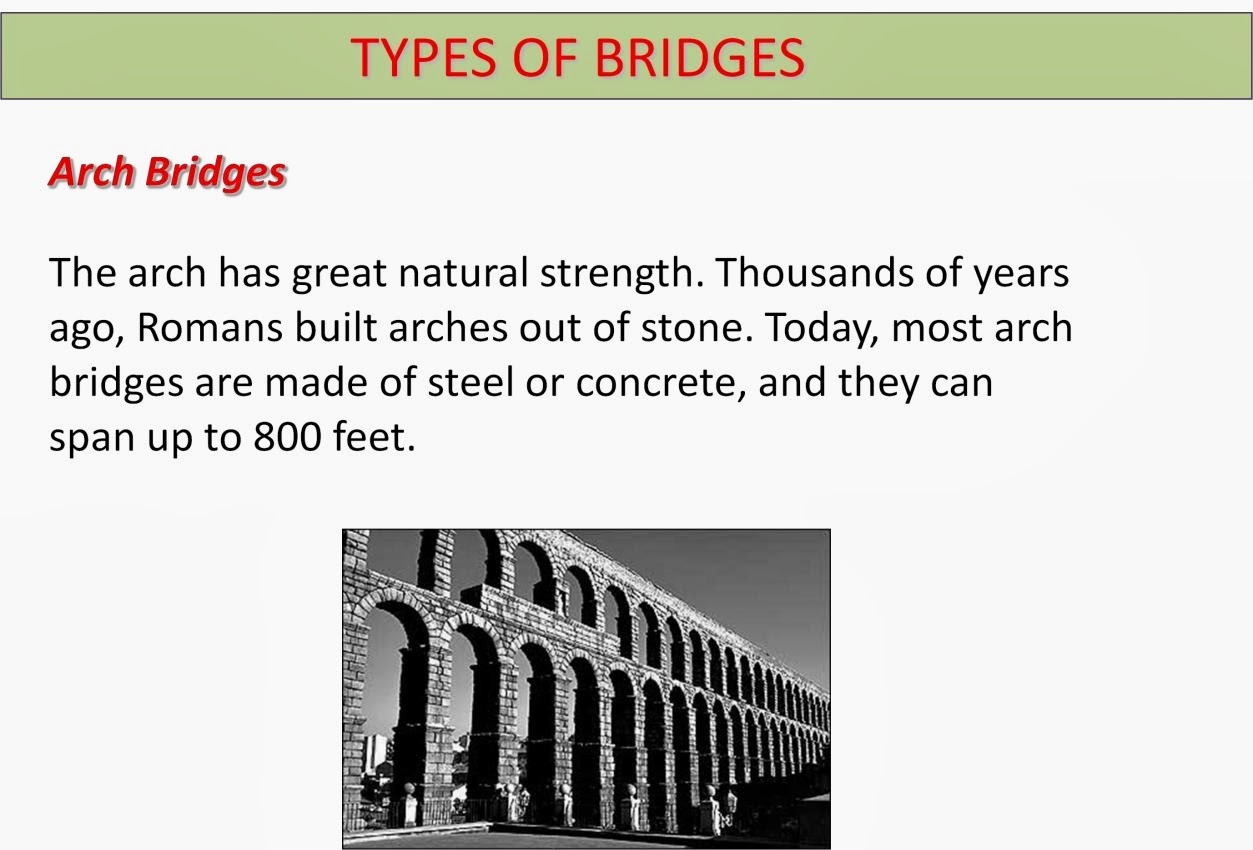

• Arch
• Suspension
Suspension bridges are made up of high tensile steel cables strung in form of catenaries to which the deck is attached by steel suspenders, which are mainly made up of steel rods/members/cables.
Suspension bridges are made up of high tensile steel cables strung in form of catenaries to which the deck is attached by steel suspenders, which are mainly made up of steel rods/members/cables.
• Cable stayed
Cable-stayed bridges are similar to the suspension bridges excepting that there will be no suspenders in the cable stayed bridges and a number of these can be of masonry,concrete or steel.
Cable-stayed bridges are similar to the suspension bridges excepting that there will be no suspenders in the cable stayed bridges and a number of these can be of masonry,concrete or steel.
• Various economical span ranges for these types generally adopted are:
Arch : For small spans of 3 to 15m in masonry, steel arch up to 519m and concrete arches up to 305m spans.
Slabs : Up to 9m.
Girders and beams : 10 to 60m (exception up to 250m in continuous construction).
Trusses : 30 to 375m simply supported and up to 550m with cantilevered combination.
Suspension Bridges : Over 500m up to 1400m.
Cable Stayed : 300 to 600m.
• According to the materials of construction used for superstructure as cement concrete, prestressed
concrete, steel, masonry, iron, timber or composite bridges.
The earliest form of materials used for construction of bridges was first stone and later brick. The masonry bridges are used for short spans and according to availability of material and skilled labour. They are mainly of arch type of bridges. The next form of construction was Timber Bridge in which timber was used for spanning the gap and also for supporting the beams. Timber bridges are used for short spans, light loads and for use as temporary and unimportant bridges. With the invention and development of concrete, bridges are being built entirely with concrete, either reinforced or prestressed or a combination of both for superstructure. Many combination of above types are also possible. The common examples of composite construction are
• Concrete beams reinforced with steel bars.
• Precast prestressed concrete girder with cast-in-situ RCC slab.
Following are the advantages of composite bridges.
• It leads to reduction in deflection and vibrations.
• It leads to speed in construction.
• It proves to be economical.
• It results in better quality control.
• The cost of formwork is reduced.
• The cost of foundations for abutments is reduced.
• The cost of transportation is minimized.
• The overall depth of beam for a composite construction is reduced and
• It leads to savings in lengths of approaches.
• Table shows the maximum spans up to which a particular type of bridge can be recommended.
Sr. Type Maximum
No.
1 RCC arch bridge 200 m
2 RCC bow-string girder bridge 45 m
3 RCC cantilever bridges with balanced type
4 RCC continuous bridge 45 m
5 RCC deck type girder bridge 20 m
6 RCC filled spandrel fixed arch bridge 35 m
7 RCC open spandrel rib type bridge 60 m
8 RCC portal frame bridge 15 m
9 Prestressed concrete arch bridge 150 m
10 Prestressed concrete continuous bridge 110 m
11 Prestressed concrete girder bridge simply 55 m span 30 m supported
12 Steel arch bridge 500 m
13 Steel bow-string girder bridge 240 m
14 Steel cable suspension bridge 1200 m
15 Steel plate girder 30 m
16 Steel rolled beam bridge 10 m
17 Steel truss bridge 180 m
Sr. Type Maximum
No.
1 RCC arch bridge 200 m
2 RCC bow-string girder bridge 45 m
3 RCC cantilever bridges with balanced type
4 RCC continuous bridge 45 m
5 RCC deck type girder bridge 20 m
6 RCC filled spandrel fixed arch bridge 35 m
7 RCC open spandrel rib type bridge 60 m
8 RCC portal frame bridge 15 m
9 Prestressed concrete arch bridge 150 m
10 Prestressed concrete continuous bridge 110 m
11 Prestressed concrete girder bridge simply 55 m span 30 m supported
12 Steel arch bridge 500 m
13 Steel bow-string girder bridge 240 m
14 Steel cable suspension bridge 1200 m
15 Steel plate girder 30 m
16 Steel rolled beam bridge 10 m
17 Steel truss bridge 180 m
> According to the method of clearance for navigation as bascule, lift, swing or transporter bridges.
• Movable – bascule bridges
In bascule bridges, the main girders are lifted together with deck about the hinge provided on one end of the span.
Depending upon the width of channel, the bascule bridge may either be single or double.
• Movable – bascule bridges
In bascule bridges, the main girders are lifted together with deck about the hinge provided on one end of the span.
Depending upon the width of channel, the bascule bridge may either be single or double.
• Movable – swing bridges
In swing bridges, the girders and deck can be swung about its middle over the middle pier, clearing the span on either side for passage ship.
In swing bridges, the girders and deck can be swung about its middle over the middle pier, clearing the span on either side for passage ship.
• Movable – lift bridges
In this case, gantries are provided at the piers at either end of the span and the entire girder and the floor system is lifted up by a hydraulic arrangement to the extent required for free passage of the ship.
In this case, gantries are provided at the piers at either end of the span and the entire girder and the floor system is lifted up by a hydraulic arrangement to the extent required for free passage of the ship.
• Transporter
In case of transporter bridges, a moving cage is suspended from an overhead truss with the help of cable or wire ropes. The overhead truss rests on two towers and it contains rails for cage to roll. This type of bridge is used within a harbour area to provide an arrangement for shifting of men and materials across a channel
> According to the expected utility period of service 1) temporary bridges. 2) Permanent Bridges
• Temporary bridges
The temporary bridges are defined as structures, which are constructed to cross a river or a stream in place of permanent works. Such bridges are useful when it is not possible to construct a permanent bridge due to shortage of money, time, good materials or skilled labour. The temporary bridges are often constructed on diversions during the reconstruction of an existing permanent bridge. The useful life of a temporary bridge is estimated as about 10 years.
• Permanent bridges
The permanent bridges are defined as structures, which are constructed to cross a river or a stream permanently.
• According to the function as road, railway, road-cum-railway or pipeline bridges.
• Temporary bridges
The temporary bridges are defined as structures, which are constructed to cross a river or a stream in place of permanent works. Such bridges are useful when it is not possible to construct a permanent bridge due to shortage of money, time, good materials or skilled labour. The temporary bridges are often constructed on diversions during the reconstruction of an existing permanent bridge. The useful life of a temporary bridge is estimated as about 10 years.
• Permanent bridges
The permanent bridges are defined as structures, which are constructed to cross a river or a stream permanently.
• According to the function as road, railway, road-cum-railway or pipeline bridges.
> According to the method of connections adopted in steel bridges as riveted, welded or pin-connected bridges.
Majority of steel bridges are of riveted type, welded type is recently used.
• Pin-connected
• Riveted
• Riveted connections are proved to be more rigid and responsible for secondary stresses. ·
• Welded
Majority of steel bridges are of riveted type, welded type is recently used.
• Pin-connected
• Riveted
• Riveted connections are proved to be more rigid and responsible for secondary stresses. ·
• Welded
> According to the length of span as culvert, minor bridges, major bridges or long span bridges.
• Culverts (less than 6m)
• Culvert is a bridge having a gross length of six meters or less between the faces of abutments or extreme vent way boundaries and measured at right angles thereto.
·Minor bridge (6 to 30m)
·Major bridge (above 30m)
·Long span bridge (above 120m)
• According to the level of crossing of highways and railways as over bridges or under bridges.
• Over bridge
When the highway bridge is carried over or under the highway by means of bridge, the bridge is known as over bridge.
• Under bridge
When the highway is carried under the railway track by means of bridge is known as the under bridge.
> According to the alignment as straight or skew bridges.
PRELIMARY DATA TO BE COLLECTED FOR BRIDGE CONSTRUCTION
• Availability of Electric Power
• Availability of materials of construction
• Availability of skilled and unskilled labour for different jobs of bridge construction
• Details of existing bridge on the same river
• Characteristics and hydraulic data of river
• Means of transport to carry the materials
• Name of river and location of bridge site
• Nature of road traffic at bridge site
• Possibility of earthquake disturbances
• Present and future traffic
• Sub soil conditions
• Safety and aesthetic considerations
>SELECTION OF BRIDGE SITE
• Connection with roads
The bridges are constructed to connect the roads on either side of a river .The approach should avoid the cutting
across the built up area or religious structures because the acquisition of the land and structures will be expensive
and time consuming.
• Firm Embankments
The embankments on the upstream and downstream side of bridge site should be firm, high, permanent, solid,
and straight
• Foundations
The nature of soil at the bed of river at bridge site should be such that good foundations are available at
reasonable depth for sub structure of bridge.
• Velocity of flow
It is very important to check that the velocity of flow at bridge site is proper. If the velocity of flow is less than a
particular value, the silting will occur and on other hand if it is more than a particular value the scouring will occur.
As a matter the velocity of flow at bridge site should be Non silting & Non scouring velocities
• Width of river
It is quite evident that the width of river indicates length of bridge. It is desirable to have a minimum width of
river at bridge site. Smaller is the width cheaper is the bridge.
PRELIMARY DATA TO BE COLLECTED FOR BRIDGE CONSTRUCTION
• Availability of Electric Power
• Availability of materials of construction
• Availability of skilled and unskilled labour for different jobs of bridge construction
• Details of existing bridge on the same river
• Characteristics and hydraulic data of river
• Means of transport to carry the materials
• Name of river and location of bridge site
• Nature of road traffic at bridge site
• Possibility of earthquake disturbances
• Present and future traffic
• Sub soil conditions
• Safety and aesthetic considerations
>SELECTION OF BRIDGE SITE
• Connection with roads
The bridges are constructed to connect the roads on either side of a river .The approach should avoid the cutting
across the built up area or religious structures because the acquisition of the land and structures will be expensive
and time consuming.
• Firm Embankments
The embankments on the upstream and downstream side of bridge site should be firm, high, permanent, solid,
and straight
• Foundations
The nature of soil at the bed of river at bridge site should be such that good foundations are available at
reasonable depth for sub structure of bridge.
• Velocity of flow
It is very important to check that the velocity of flow at bridge site is proper. If the velocity of flow is less than a
particular value, the silting will occur and on other hand if it is more than a particular value the scouring will occur.
As a matter the velocity of flow at bridge site should be Non silting & Non scouring velocities
• Width of river
It is quite evident that the width of river indicates length of bridge. It is desirable to have a minimum width of
river at bridge site. Smaller is the width cheaper is the bridge.
>NUMBER OF SPAN
The number of spans for a bridge should be carefully decided by considering all aspects of bridge such as cost of
construction, nature of flow, importance of bridge, material available etc.
Following important points are to be remembered while deciding the number of spans for a bridge.
• Alternative proposals
It is desirable to prepare 3 or 4 alternative proposals of number of spans for a bridge and then the one which is
most economical and suitable should be recommended
• Foundation for piers
The foundations available for piers also play an important role in determining the number of spans for a bridge.
The piers should rest on firm and stable soil.
• Odd numbers of spans
It is desirable to adopt odd numbers of spans of a bridge. The velocity of flow is the highest at centre of length of
bridge. An odd number of spans will provide an opening in the centre of length of bridge.
• Span
It is desirable to have span as large as possible. In other words the number of spans should be restricted to as few
as possible especially in mountainous regions . On other hand the small spans will require more piers and hence the
waterway under the bridge will be seriously obstructed.
The number of spans for a bridge should be carefully decided by considering all aspects of bridge such as cost of
construction, nature of flow, importance of bridge, material available etc.
Following important points are to be remembered while deciding the number of spans for a bridge.
• Alternative proposals
It is desirable to prepare 3 or 4 alternative proposals of number of spans for a bridge and then the one which is
most economical and suitable should be recommended
• Foundation for piers
The foundations available for piers also play an important role in determining the number of spans for a bridge.
The piers should rest on firm and stable soil.
• Odd numbers of spans
It is desirable to adopt odd numbers of spans of a bridge. The velocity of flow is the highest at centre of length of
bridge. An odd number of spans will provide an opening in the centre of length of bridge.
• Span
It is desirable to have span as large as possible. In other words the number of spans should be restricted to as few
as possible especially in mountainous regions . On other hand the small spans will require more piers and hence the
waterway under the bridge will be seriously obstructed.
>CHOICE OF BRIDGE TYPE
• Some of the aspects which influence the choice to be made between different types of bridges are as
follows.
• Availability of Funds
If the fund available is not sufficient to put up a high level bridge, the small submersible bridge should be
recommended.
• Climatic conditions
If the environmental conditions are unsuitable certain types of bridge cannot be constructed. if the climatic
conditions at bridge site are likely to accelerate the process of corrosion, the steel trusses cannot be adopted.
• Economy in construction
If the river is wide the economy in construction can be achieved by putting up a road cum rail bridge in two tiers
instead of two separate bridges.
• Foundations
The soil conditions at bridge site may bring down the possible alternatives and under such circumstances the
choice of a particular type of bridge is to be made from such limited alternatives only.
• Navigational requirements
If it is desired to have more vertical clearance for satisfying the navigational requirements of the community
certain types of bridges such as arch bridges, suspension bridges will only have to be selected.
• Type of Traffic
• The steel trusses are preferable to the suspension bridges for railway traffic. The traffic forecast is made for
the project as such and it will help in determining the size of bridge i.e. numbers of lanes or tracks to be
provided. Future traffic is also to be taken in to considerations.
• Some of the aspects which influence the choice to be made between different types of bridges are as
follows.
• Availability of Funds
If the fund available is not sufficient to put up a high level bridge, the small submersible bridge should be
recommended.
• Climatic conditions
If the environmental conditions are unsuitable certain types of bridge cannot be constructed. if the climatic
conditions at bridge site are likely to accelerate the process of corrosion, the steel trusses cannot be adopted.
• Economy in construction
If the river is wide the economy in construction can be achieved by putting up a road cum rail bridge in two tiers
instead of two separate bridges.
• Foundations
The soil conditions at bridge site may bring down the possible alternatives and under such circumstances the
choice of a particular type of bridge is to be made from such limited alternatives only.
• Navigational requirements
If it is desired to have more vertical clearance for satisfying the navigational requirements of the community
certain types of bridges such as arch bridges, suspension bridges will only have to be selected.
• Type of Traffic
• The steel trusses are preferable to the suspension bridges for railway traffic. The traffic forecast is made for
the project as such and it will help in determining the size of bridge i.e. numbers of lanes or tracks to be
provided. Future traffic is also to be taken in to considerations.
>REQUIREMENTS OF AN IDEAL BRIDGE
An ideal bridge should fulfill the following requirements.
• It should be efficient and effective
• It should be economical
• It should save the intended function with utmost safety and convenience.
An ideal bridge should fulfill the following requirements.
• It should be efficient and effective
• It should be economical
• It should save the intended function with utmost safety and convenience.
>FOUNDATIONS
• The foundations are required to distribute equally and uniformly the total load of the bridge on the soil.
• Essentials requirements of a good foundation
• Location
The foundation structure should be so located that it is able to resist any unexpected future influence which may
adversely effect its performance
• Stability
The foundation structure should be stable or safe against any possible failure
• Settlement
The foundation structure should not settle or deflect to such an extent so as to impair its usefulness.
• The foundations are required to distribute equally and uniformly the total load of the bridge on the soil.
• Essentials requirements of a good foundation
• Location
The foundation structure should be so located that it is able to resist any unexpected future influence which may
adversely effect its performance
• Stability
The foundation structure should be stable or safe against any possible failure
• Settlement
The foundation structure should not settle or deflect to such an extent so as to impair its usefulness.
>GENERAL PRINCIPLES OF DESIGN OF BRIDGE FOUNDATIONS
• Following two factors influence the design of bridge foundations
• Bearing capacity of soil
The bridge foundations should be taken to such a depth that the soil at that depth has sufficient safe bearing
capacity to withstand the load coming upon it without any settlement.
• Scour
The term scour is used to indicate the increase in depth in vertical direction of the bed of river. Such increase in
depth mainly occurs due to current of flowing water, bed material, discharge, bed slope etc.
• Following two factors influence the design of bridge foundations
• Bearing capacity of soil
The bridge foundations should be taken to such a depth that the soil at that depth has sufficient safe bearing
capacity to withstand the load coming upon it without any settlement.
• Scour
The term scour is used to indicate the increase in depth in vertical direction of the bed of river. Such increase in
depth mainly occurs due to current of flowing water, bed material, discharge, bed slope etc.
>TYPES OF FOUNDATIONS
• There are three types of bridge foundations
• Spread foundations
They are also called as open foundations as the construction is carried out in open excavation. As the work is
carried out in open these types of foundations are adopted where depth of water is not more and good soil is
available at shallow depth.
• Pile Foundations
The term pile foundation is used to describe a construction for the foundation of bridge piers which in turn is
supported on the piles. This types of foundation are adopted where the loose soil extend to greater depth. The piles
are driven vertically or in near vertical position.
• Coffer dams
It is a temporary structure which is constructed so as to remove water from an area and make it possible to carry
on the construction work under reasonably dry conditions.
• Caisson
It is a structure which is sunk through ground or water to exclude water and semi fluid material during the
process of excavation of foundations and which subsequently becomes an integral part of the sub structure
• There are three types of bridge foundations
• Spread foundations
They are also called as open foundations as the construction is carried out in open excavation. As the work is
carried out in open these types of foundations are adopted where depth of water is not more and good soil is
available at shallow depth.
• Pile Foundations
The term pile foundation is used to describe a construction for the foundation of bridge piers which in turn is
supported on the piles. This types of foundation are adopted where the loose soil extend to greater depth. The piles
are driven vertically or in near vertical position.
• Coffer dams
It is a temporary structure which is constructed so as to remove water from an area and make it possible to carry
on the construction work under reasonably dry conditions.
• Caisson
It is a structure which is sunk through ground or water to exclude water and semi fluid material during the
process of excavation of foundations and which subsequently becomes an integral part of the sub structure
>LOADING ON BRIDGES
• A bridge is to be designed for the worst effects produced by various forces, loads and stresses which are
acting on it simultaneously.
• Following are the various such forces, loads and stresses acting on a bridge.
• Buoyancy Pressure
The effect of buoyancy is considered in the design of bridge only if the strata of soil are permeable.
• Centrifugal Forces
When a road or railway bridge is situated on a curve, the effect due to centrifugal force is to be considered in
design.
• Dead Load
It indicates the load of structure itself.
• Deformation Stresses
Any bending stress which is developed in a steel member either due to vertical deflection or rigidity of joints is
called Deformation Stresses. It is to be taken for steel bridges only.
• Earth Pressure
The components of bridge which are required to retain earth should be designed for suitable earth pressure.
• Impact Load
The stresses developed due to fast moving heavy vehicles over uneven surfaces in case of road bridges is called
stress due to impact.
• Live Load
This are load coming on the bridges due vehicles goods etc.
• Seismic Load
When a bridge is situated in a locality which is likely to be affected by earthquakes, necessary allowance is to
be made in design of bridge for seismic load.
• Temperature variation forces
Due to variation in temperature the length of the structure is effected. If this changes are restrained the
temperature stresses are developed.
• Water Pressure
The portion of bridge which is submerged in running water is designed for horizontal forces of water current.
• Wind Load
The wind load is directly proportional to the square of the velocity and it is expressed as P=KV2
• A bridge is to be designed for the worst effects produced by various forces, loads and stresses which are
acting on it simultaneously.
• Following are the various such forces, loads and stresses acting on a bridge.
• Buoyancy Pressure
The effect of buoyancy is considered in the design of bridge only if the strata of soil are permeable.
• Centrifugal Forces
When a road or railway bridge is situated on a curve, the effect due to centrifugal force is to be considered in
design.
• Dead Load
It indicates the load of structure itself.
• Deformation Stresses
Any bending stress which is developed in a steel member either due to vertical deflection or rigidity of joints is
called Deformation Stresses. It is to be taken for steel bridges only.
• Earth Pressure
The components of bridge which are required to retain earth should be designed for suitable earth pressure.
• Impact Load
The stresses developed due to fast moving heavy vehicles over uneven surfaces in case of road bridges is called
stress due to impact.
• Live Load
This are load coming on the bridges due vehicles goods etc.
• Seismic Load
When a bridge is situated in a locality which is likely to be affected by earthquakes, necessary allowance is to
be made in design of bridge for seismic load.
• Temperature variation forces
Due to variation in temperature the length of the structure is effected. If this changes are restrained the
temperature stresses are developed.
• Water Pressure
The portion of bridge which is submerged in running water is designed for horizontal forces of water current.
• Wind Load
The wind load is directly proportional to the square of the velocity and it is expressed as P=KV2
Course : Elementary Communication Skills (Autonomous Engineering GTU)
Unit - 1 Fundamentals of Communication
Learning Outcomes (Student Learning Outcomes)
• Identify the need for good communication skills
• Develop the understanding of the principles of effective communication
• Demonstrate the understanding of barriers that creep into communication process and exhibit the capacity to overcome them.
• Relate the components of communication in their life
Topics and Sub-topics
1. Concept and Process of Communication
2. Purposes of Communication
3. Barriers to Communication
4. Strategies to overcome barriers to communication
5. Get acquainted with the following:
* Classification of communication (on the basis of types, flow and means/manners)
* Networks of communication
Unit - 2 Fundamentals of Non-Verbal Communication
Learning Outcomes (Student Learning Outcomes)
• Describe various components of non-verbal communication
• Explain the meaning of non-verbal communication
• Relate and apply the things learnt during communication
Topics and Sub-topics
1. Concept and Importance
2. Basics of Non-Verbal Communication
* Personal Appearance
* Kinesics
* Proxemics
* Chronemics
* Paralinguistics
3. Get acquainted with the following:
* Use of Visual Aids like tables, figures, charts, graphs (what, why, when and how)
* Gestures and the meanings they convey
* Postures and the meanings they convey
Unit - 3 Fundamentals of Public Speaking
Learning Outcomes (Student Learning Outcomes)
• Give a clear, organized and accurate speeches related to their field
• Clearly state questions, concerns, and ideas so that listener can understand the intent
• Discuss among various size groups of students so as to be able to contribute without over powering others
Topics and Sub-topics
1. Concept and Importance
2. Features of a Good Speech
3. Various Structures of Speeches (chronological, causal, spatial etc)
4. Methods of Delivering Speeches – their pros and cons
5. Different types of speeches
* Welcome / Introductory
* Vote of thanks
* Farewell speeches etc
Unit - 4 Fundamentals of Listening Skills
Learning Outcomes (Student Learning Outcomes)
• listen effectively in a variety of situations for a variety of purposes
• Practise the behaviours of effective, active listeners
• Assess strengths in listening and set goals for future growth
• Compose notes on listening lectures / notes
Topics and Sub-topics
1. Concept, Significance and Process
2. Reasons for Poor Listening
3. Characteristics of a good listener
4. Strategies to overcome barriers
5. Note Taking
* Concept and Importance
* Features of Good Notes
* Methods of Preparing Good Notes
6. Get acquainted with:
* Content listening
* Empathetic Listening
* Critical Listening
* Analytical Listening
* Superficial Listening
* Intensive Listening
* Extensive Listening
Unit - 5 Fundamentals of Reading Skills
Learning Outcomes (Student Learning Outcomes)
• Define meaning and purpose of reading
• Recognize the reasons for poor reading
• Apply the strategies to develop necessary reading skills
• Develop notes on the basis of reading
Topics and Sub-topics
1. Concept and Importance of Reading
2. Purposes of Reading
3. Reasons for Poor Reading Skills
4. Strategies to Develop Reading Skills
5. Methods of Reading
6. Non-verbal Signals in Reading
7. Get acquainted with the following:
* Scanning
* Skimming
* Critical Reading
* Intensive Reading
* Extensive Reading
Unit - 6 Fundamentals of Writing Skills
Learning Outcomes (Student Learning Outcomes)
• Demonstrate the capacity to use various writing forms
• Demonstrate improvements in written expression of thought by utilizing various techniques
• Demonstrate the capacity to effectively integrate multiple sources
Topics and Sub-topics
1. Concept and Importance
2. Pros and Cons of Written Communication
3. Do’s and Don’ts of Written Communication
4. Paragraph Writing
* Structure of a paragraph
* Techniques of Paragraph development
5. Note Making
* Concept and Importance
* Features of Good Notes
* Methods of Preparing Good Notes
6. Précis Writing
* Concept and Importance
* Steps of writing a précis
Learning Outcomes (Student Learning Outcomes)
• Identify the need for good communication skills
• Develop the understanding of the principles of effective communication
• Demonstrate the understanding of barriers that creep into communication process and exhibit the capacity to overcome them.
• Relate the components of communication in their life
Topics and Sub-topics
1. Concept and Process of Communication
2. Purposes of Communication
3. Barriers to Communication
4. Strategies to overcome barriers to communication
5. Get acquainted with the following:
* Classification of communication (on the basis of types, flow and means/manners)
* Networks of communication
Unit - 2 Fundamentals of Non-Verbal Communication
Learning Outcomes (Student Learning Outcomes)
• Describe various components of non-verbal communication
• Explain the meaning of non-verbal communication
• Relate and apply the things learnt during communication
Topics and Sub-topics
1. Concept and Importance
2. Basics of Non-Verbal Communication
* Personal Appearance
* Kinesics
* Proxemics
* Chronemics
* Paralinguistics
3. Get acquainted with the following:
* Use of Visual Aids like tables, figures, charts, graphs (what, why, when and how)
* Gestures and the meanings they convey
* Postures and the meanings they convey
Unit - 3 Fundamentals of Public Speaking
Learning Outcomes (Student Learning Outcomes)
• Give a clear, organized and accurate speeches related to their field
• Clearly state questions, concerns, and ideas so that listener can understand the intent
• Discuss among various size groups of students so as to be able to contribute without over powering others
Topics and Sub-topics
1. Concept and Importance
2. Features of a Good Speech
3. Various Structures of Speeches (chronological, causal, spatial etc)
4. Methods of Delivering Speeches – their pros and cons
5. Different types of speeches
* Welcome / Introductory
* Vote of thanks
* Farewell speeches etc
Unit - 4 Fundamentals of Listening Skills
Learning Outcomes (Student Learning Outcomes)
• listen effectively in a variety of situations for a variety of purposes
• Practise the behaviours of effective, active listeners
• Assess strengths in listening and set goals for future growth
• Compose notes on listening lectures / notes
Topics and Sub-topics
1. Concept, Significance and Process
2. Reasons for Poor Listening
3. Characteristics of a good listener
4. Strategies to overcome barriers
5. Note Taking
* Concept and Importance
* Features of Good Notes
* Methods of Preparing Good Notes
6. Get acquainted with:
* Content listening
* Empathetic Listening
* Critical Listening
* Analytical Listening
* Superficial Listening
* Intensive Listening
* Extensive Listening
Unit - 5 Fundamentals of Reading Skills
Learning Outcomes (Student Learning Outcomes)
• Define meaning and purpose of reading
• Recognize the reasons for poor reading
• Apply the strategies to develop necessary reading skills
• Develop notes on the basis of reading
Topics and Sub-topics
1. Concept and Importance of Reading
2. Purposes of Reading
3. Reasons for Poor Reading Skills
4. Strategies to Develop Reading Skills
5. Methods of Reading
6. Non-verbal Signals in Reading
7. Get acquainted with the following:
* Scanning
* Skimming
* Critical Reading
* Intensive Reading
* Extensive Reading
Unit - 6 Fundamentals of Writing Skills
Learning Outcomes (Student Learning Outcomes)
• Demonstrate the capacity to use various writing forms
• Demonstrate improvements in written expression of thought by utilizing various techniques
• Demonstrate the capacity to effectively integrate multiple sources
Topics and Sub-topics
1. Concept and Importance
2. Pros and Cons of Written Communication
3. Do’s and Don’ts of Written Communication
4. Paragraph Writing
* Structure of a paragraph
* Techniques of Paragraph development
5. Note Making
* Concept and Importance
* Features of Good Notes
* Methods of Preparing Good Notes
6. Précis Writing
* Concept and Importance
* Steps of writing a précis
Tuesday, 21 January 2014
Architectural Acoustics
Important Questions
Ø
Standard intensity of sound:
The minimum sound intensity
that could be heard by humans is known as the
standard intensity and its
value is 10–12 W/m2.
Ø
Reverberation Time :
Reverberation is defined as
the persistence of sound even after the source is cut off.
Ø Classification of Souns based
on frequency :
Sound
is classified according to its ability of being heard by humans as audible
sound and inaudible sound. Audible sound has a frequency range that
lies between 20 and 20,000 Hz. The sound frequencies that lie outside of this
upper limit are known as ultrasonic frequencies (>20,000 Hz) and
those that lie outside of the lower limit are known as infrasonic
frequencies (<20 Hz).
Ø Musical sound is
characterized by three distinct qualities :
(i)
Pitch
(ii)
Intensity or loudness
(iii) Quality or timbre
Ø
Acoustics of a building are affected by various
factors :
Reverberation
time
Loudness
Focussing
Echo
Echelon
effect
Resonance
Noise
Ø
Echo :
An echo is the repetition of
the original sound by a reflecting surface. An echo
is produced when the
reflecting surface is more than 17 m away from the sound
source or the time interval between
the two sounds is about 1/7th of a second. In
both the cases, the reflected
sound is heard little later as a distinct repetition of the
original sound causing
confusion to the listener (The reflected sound is heard along
with the original sound.) This
effect is more common when the reflecting surface
is curved.
Ø Absorption Coefficient :
Absorption coefficient is an important quantity
that is essential in designing an acoustically good building. The value of the
absorption coefficient affects reverberation and reverberation time. If the
absorption value is higher, then more sound energy is absorbed and the sound
dies quickly. If the value is lower, then there is less absorption and the
reverberation time increases. For example, if an auditorium’s intended use is
for musical concert, then the value of the absorbent coefficient for the
auditorium should be lower
If the auditorium is designed for public speaking,
then the value of absorption coefficient should be higher (but not very high).
This absorbs a large portion of the sound energy and thus there is no
overlapping of individual words. Typically for a musical hall, the absorption
coefficient value is such that the reverberation time is of the order of 1.5–2
s. In the case of the auditorium being used for the purpose of speech, the
reverberation time should be between 0.5 and 1 s. The absorption coefficient is
defined as the ratio of the sound energy absorbed by the surface to that of the
total sound energy incident on the surface.
Absorption Coefficient
‘a’ = Sound energy absorbed by the surface / Total sound energy incident on the surface
Alternatively, the absorption coefficient is
defined as the reciprocal of an area which absorbs the same amount of sound
energy as absorbed by a unit area of an open window
The unit for absorption coefficient is W/m2 or open
window units (OWU). For example, if a wall of 4 m2 area absorbs the same
sound energy as that of a 1 m2 area of an openwindow, then the absorption
coefficient of the wall is = 1/4 = 0.25 OWU.
Important Formulas
* IL = 10 log10(I/Io)
* T = 0.165V/aS
* Intensity of Sound = Radiating Power/ Area = P/ 4pi(r*r)
Subscribe to:
Posts (Atom)
